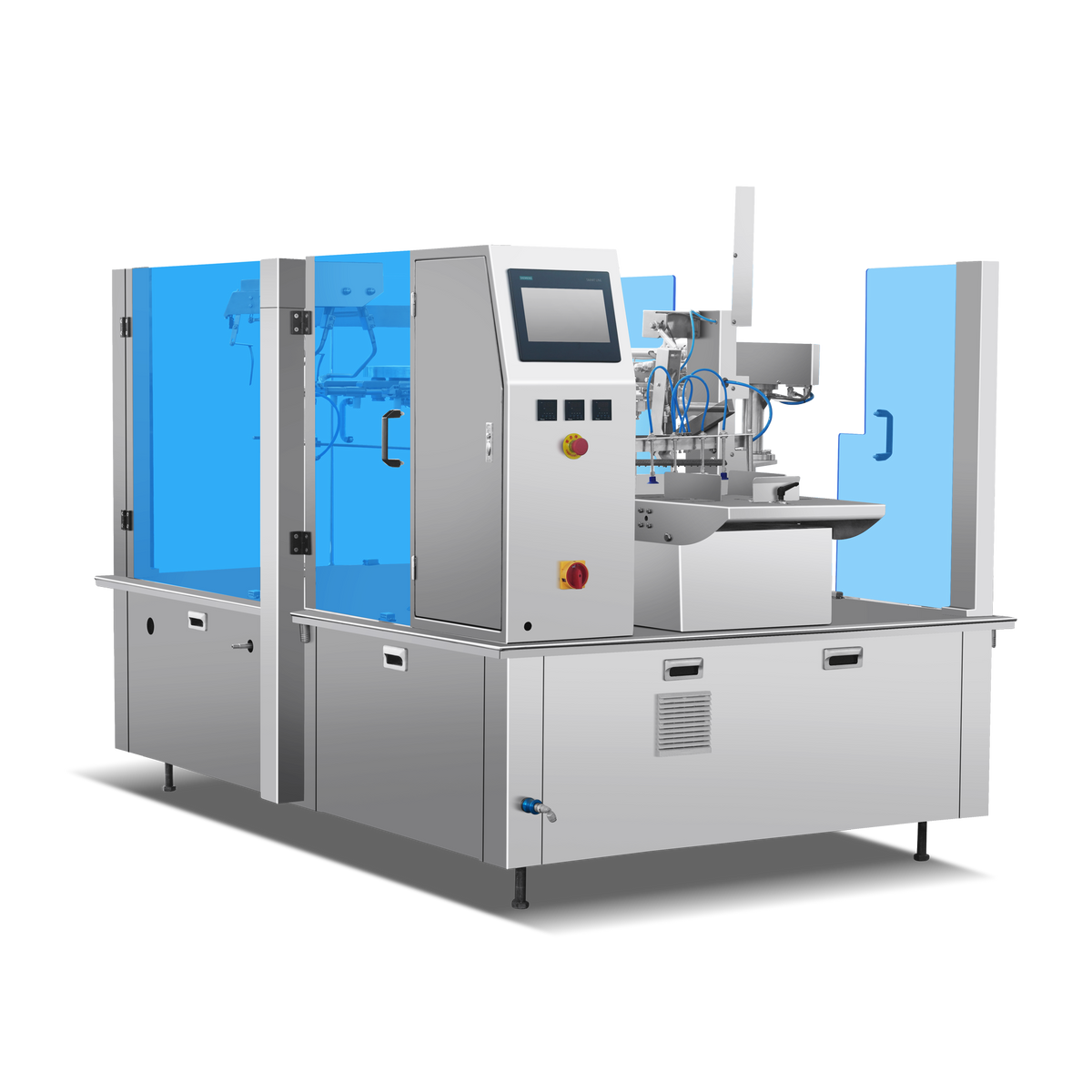

HL8D-350S BAG PACKAGING MACHINE

MAIN PERFORMANCE AND FEATURES

The entire machine's food contact surface is made of 304 stainless steel, which meets the hygiene standards of the food processing industry. Adopting internationally renowned brand PLC control, color touch screen display, packaging quantity, packaging speed and other parameters can be completed on the display screen, with simple operation. Dual servo drive system ensures precise measurement. Automatically complete bagging, coding, opening, filling, compacting, sealing, shaping, and output.
The liquid and sauce measuring packaging system consists of a rotary packaging machine and a liquid filling machine. Imported electrical appliances and original accessories are used to ensure equipment quality and stable operation. A waterproof system makes cleaning more convenient.
Stable performance and fast speed. Automatic detection function: If the bag is not opened or opened incompletely, no feeding or heat sealing is required. The bag can be reused and waste can be avoided, saving production costs for users; Safety device: When the working pressure is abnormal or the heating tube malfunctions, an alarm prompt will be given;
Adjusting the bag width is controlled by a motor. Press and hold the control button to adjust the width of each group of machine clamps, which is easy to operate and saves time.

TECHNICAL PARAMETER

• Model: HL8D-350S

• Types of packaging bags: Self-supporting bags, handbags, zipper bags, four-sided bags, three-sided bags, paper bags and other composite bags

• Packaging bag size: W:170-350mm L:200-400mm

• Filling area: 2500-5000g(filling machines with different measuring ranges configured according to packaging quantity)

• Packaging speed: 10-200 bales/min (the speed is determined by the product itself and the filling weight)

• Packaging accuracy: Average accuracy≤±1%

• Voltage: Single Phase 380V/50Hz 4KW

• Scope of application: Peanut pulp, jam, chili sauce, detergent, rice wine, soy sauce, rice vinegar, fruit juice, etc.
