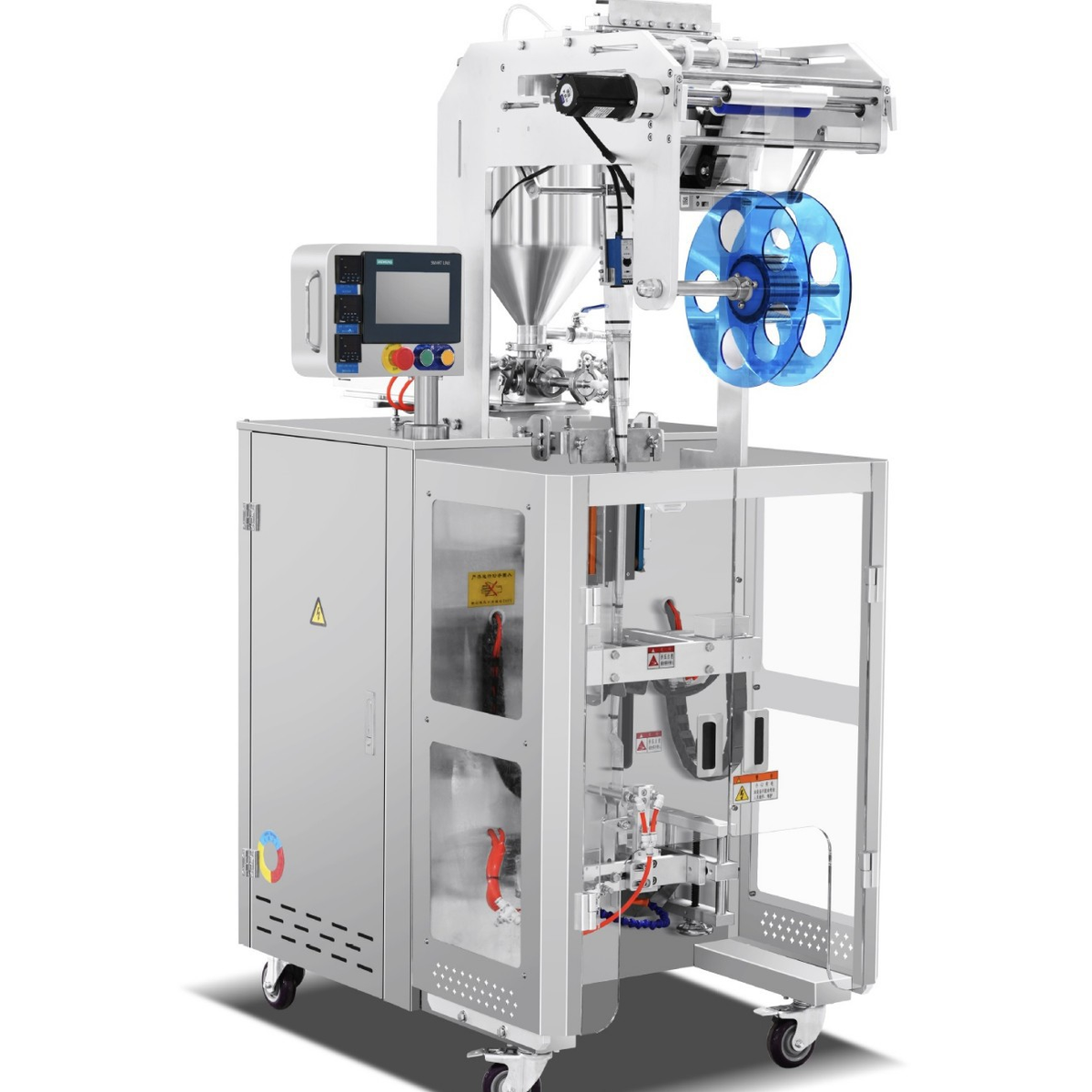

HJCR-S100 ROUND CORNER BAG SEMI FLUID PACKAGING MACHINE

SCOPE OF APPLICATION
Suitable for measuring and packaging liquids, sauces, and other materials in the food, pharmaceutical, chemical, and cosmetics industries (e.g. mouthwash, cat strips, honey, vitamin oral liquids); The contact material components of the whole machine are made of 304 stainless steel, which meets the food and drug hygiene license standards.

MAIN PERFORMANCE AND FEATURES
The machine is operated on a touch screen and controlled by a PLC. It can automatically complete bag making, measuring, discharging, sealing, cutting, counting, and can also configure printing batch numbers according to customer requirements. Intelligent photoelectric control device ensures the integrity of packaging bag patterns, servo motor controls bag length, stable performance, easy adjustment, and accurate detection.
The measurement method adopts servo piston pump, with precise stroke and fast speed, and small dosage accuracy error; The drip valve is equipped with air blowing, reducing the bag leakage rate to one thousandth, and has a wide range of applications.

TECHNICAL PARAMETER

• Model HJCR-S100

• Sealing type: Back seal- 3 side seal

• Packaging bag material: Aluminum foil film、Laminated film

• Packaging capacity: 150ML

• Packaging speed: 20-50bag/min

• Bag size (length): 45170mm

• Bag size (width): 20-70mm(3 side )

• Thickness of packaging film: 0.060.09mm(Laminated film)

• Total machine power: 2.4kw/220V/50HZ

• Air consumption: 0.8Mpa/240L/Min

• Dimensions: 960X1470X1870mm

• Weight: 325kg
