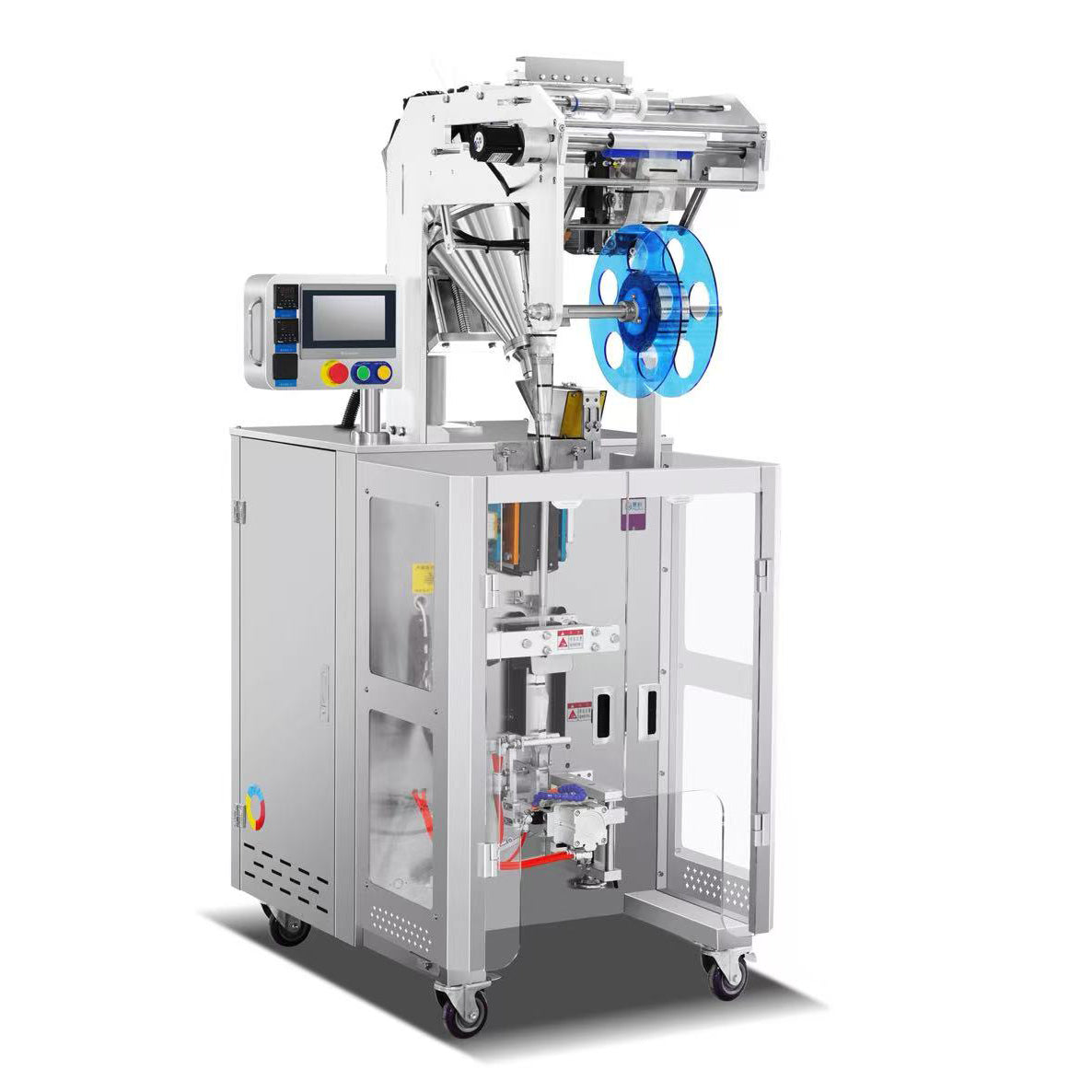

HJBR-F100 OUND CORNER BAG POWDER PACKAGING MACHINE

SCOPE OF APPLICATION
Suitable for measuring and packaging powder materials in the food, pharmaceutical, chemical, and cosmetics industries (e.g. probiotic powder, coffee powder, milk powder, solid beverages); The contact material components of the whole machine are made of 304 stainless steel, which meets the food and drug hygiene license standards
MAIN PERFORMANCE AND FEATURES
The machine is operated on a touch screen and controlled by a PLC. It can automatically complete bag making, measuring, discharging, sealing, cutting, counting, and can also configure printing batch numbers according to customer requirements. Intelligent photoelectric control device ensures complete packaging and bag making patterns and precise dosage.
The measurement method adopts servo motor control for screw feeding, servo motor control for bag length, easy adjustment, accurate and stable bag length cutting, reducing the leakage rate

TECHNICAL PARAMETER

• Model: HJBR-F100

• Sealing type: Back seal - 3 side seal

• Packaging bag material: Aluminum foil film、Laminated film

• Packaging capacity (ML): 1-50ML

• Packaging speed: 20-50bag/min

• Bag size (length): 45-170mm

• Bag size (width): 20-70mm(3-side)

• Thickness of packaging film: 0.06-0.09mm(Laminated film)

• Total machine power: 3.5kw/220V/50HZ

• Air consumption: 0.8Mpa/200L/Min

• Dimensions: 960X1470X1870mm

• Weight: 345Kg
