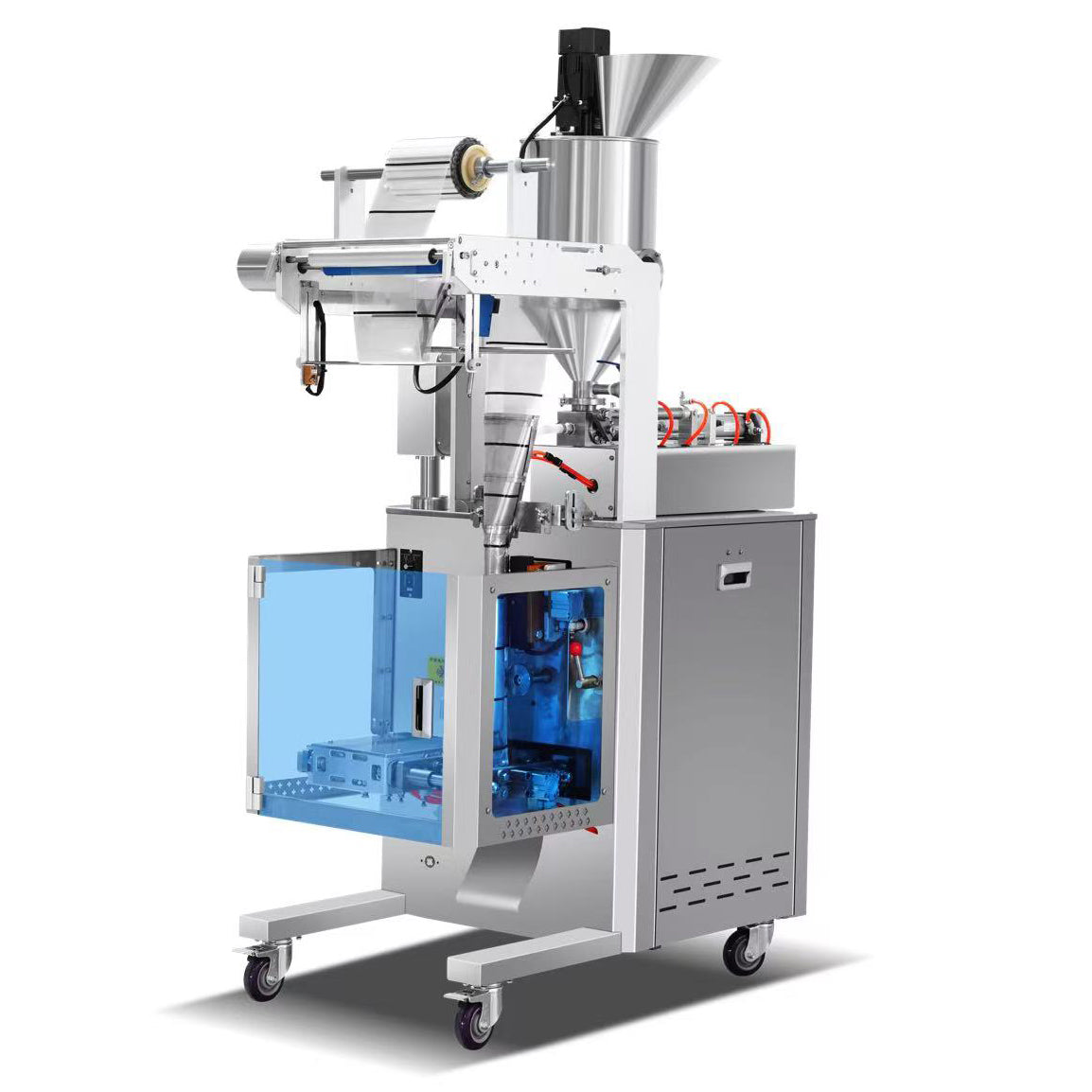

H100DS SEMI FLUID PACKAGING MACHINE

SCOPE OF APPLICATION
The equipment is suitable for packaging semi fluid materials such as honey, jam, chili sauce, vegetable oil, water, soy sauce, vinegar, dishwashing detergent, shampoo, pesticides, etc. in food, medicine, chemical and other industries.

MAIN PERFORMANCE AND FEATURES
The machine adopts a microcomputer touch screen operation, humanmachine interface, and simple and convenient operation. It can automatically complete the processes of bag making, measuring, filling, inflating, sealing, cutting, counting, coding, etc., and can also be customized according to customer requirements. Intelligent photoelectric control device ensures the integrity of packaging and bag making patterns. The measurement method adopts a plunger volumetric pump, which is easy to adjust and accurate in measurement; The bag is controlled by a stepper motor and color coded positioning, which ensures stable performance, easy adjustment, and accurate detection. This machine has back sealing, three side sealing, and four side sealing packaging forms for customers to choose from. The cutting blade can be chosen from flat blades, serrated blades, and other methods. The design ensures that the machine is suitable for different industries and easy to adjust, operate, and maintain during use. Can be used in conjunction with various automatic measuring equipment both domestically and internationally

TECHNICAL PARAMETER

• Model: H100DS

• Bag size (length): 50-170mm

• Bag size (width): 25-140mm

• Packing film width: 50-280mm

• Packaging capacity: 5-100ML

• Packaging speed: 10-65bag/min

• Power: 1.5KW/220V/50HZ

• Gas source: 0.8Mpa,200L/min

• Machine size: 900x1200x1700mm

• Weight: 247kg
