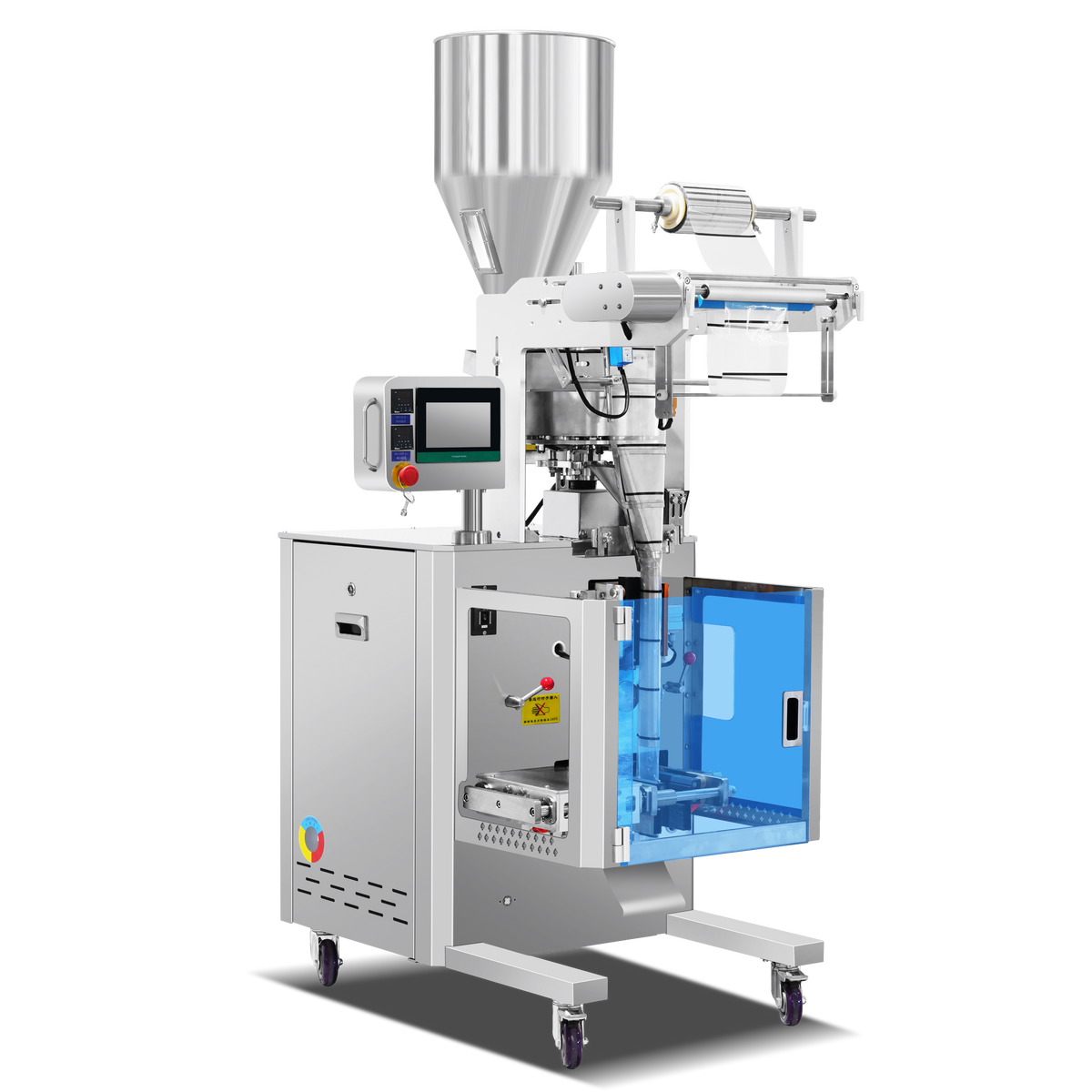

H100DK GRANULAR PACKAGING MACHINE

SCOPE OF APPLICATION
Suitable for granular materials used in food, pharmaceutical, and chemical industries, such as peanuts and nuts, Ganmaoling granules, salt, French fries, chicken powder, monosodium glutamate, white sugar, seeds, coffee beans, grains, and miscellaneous grains

MAIN PERFORMANCE AND FEATURES
The machine adopts advanced microcomputer control and is easy to operate. It can automatically complete bag making, measuring, filling, inflating, sealing, cutting, counting, coding, and can also customize punching according to customer requirements; Intelligent photoelectric control device ensures the integrity of packaging and bag making patterns. The bag is controlled by a stepper motor and color coded positioning, which ensures stable performance, easy adjustment, and accurate detection; This machine has back sealing, three side sealing, and four side sealing packaging forms for customers to choose from. The cutting blade can be used in one of three ways: flat blade, serrated blade, or dotted line; The measurement method adopts a volumetric measuring cup, which is made of stainless steel and has a telescopic capacity adjustment. The adjustment is simple and the measurement is accurate. The advanced design ensures that the machine is suitable for different industries and easy to adjust, operate, and maintain during use. Can be used in conjunction with various automatic measuring equipment both domestically and internationally

TECHNICAL PARAMETER

• Model: H100DK

• Bag size (length): 45-170mm

• Bag size (width): 25-140mm

• Packing film width: 50-280mm

• Packaging capacity: 5-100ML

• Packaging speed: 25-90bags/min

• Power: 1.8KW/220V/50HZ

• Gas source: 0.8Mpa,200L/min

• Machine size: 900x1200x1700mm

• Weight: 235kg
