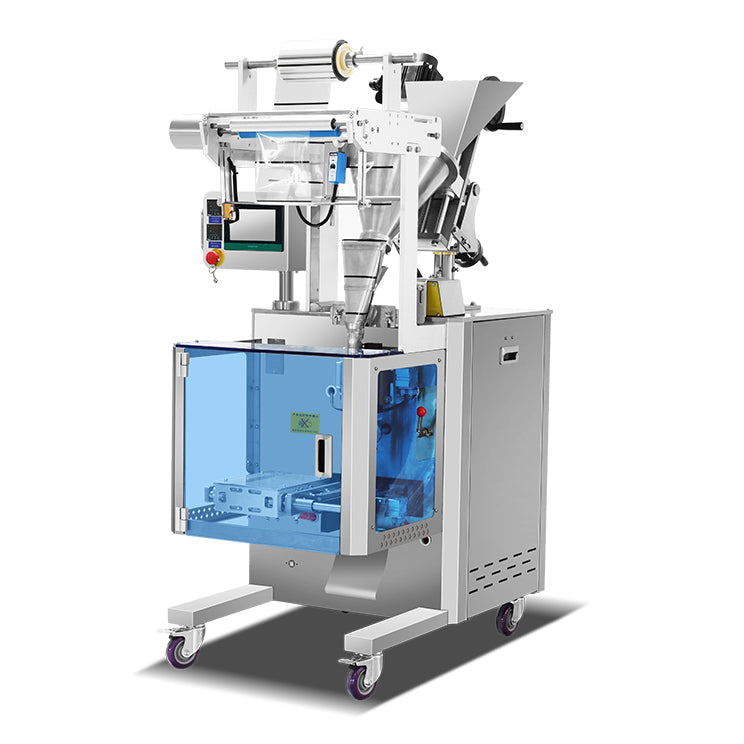

H100DF POWDER PACKAGING MACHINE

SCOPE OF APPLICATION
Powder materials suitable for food, medicine, and chemical industries, such as flour, soy milk powder, seasoning powder, coffee powder, food additives, etc

MAIN PERFORMANCE AND FEATURES
The machine adopts a microcomputer touch screen operation, human-machine interface, and simple and convenient operation It can automatically complete bag making, measuring, filling, inflating, sealing, cutting, counting, coding, and can also be customized according to customer requirementsFilling measurement configuration servo drive motor, programmable automatic control, high torque, stable operation, precise measurement; Equipped with photoelectric eyes, the bag cutting device can automatically recognize the cursor position to ensure the integrity of the packaging bag making pattern The bag is controlled by a stepper motor and color coded positioning, which ensures stable performance, easy adjustment, and accurate detection The cutting method is selected according to the characteristics of the material, and the sealing can be three sided, four sided, or back sealed; The design ensures that the machine is suitable for different industries and easy to adjust, operate, and repair during use
Can be used in conjunction with various automatic measuring equipment both domestically and internationally.

TECHNICAL PARAMETER

• Model: H100DF

• Bag size (length): 45-170mm

• Bag size (width): 25-140mm

• Packing film width: 50-280mm

• Packaging capacity: 50-100ML

• Packaging speed: 25-80bags/min

• Power: 1.8KW/220V/50HZ

• Gas source: 0.8Mpa,200L/min

• Machine size: 900x1200x1700mm

• Weight: 247kg
